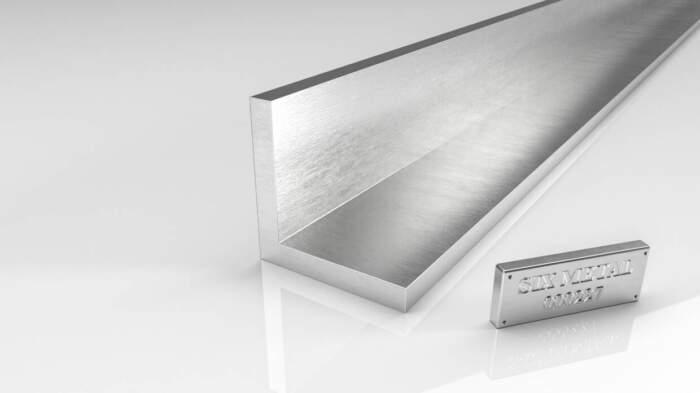

Aluminium equal angle profiles, also known as aluminium angle bars, are extruded profiles made from aluminium alloy that have a 90-degree angle between two equal legs. They are commonly used in construction, manufacturing, and DIY projects for their strength, durability, and corrosion resistance.
The dimensions of aluminium equal angle profiles can vary depending on the application, but they typically range in size from 10mm to 100mm in width and height, with thicknesses ranging from 1mm to 10mm.
These profiles can be used in a variety of applications, including framework, supports, and trim. They can also be easily cut, drilled, and welded to suit specific project requirements.
When selecting aluminium equal angle profiles, it is important to consider the alloy type, temper, and finish. The most common alloys used for aluminium equal angle profiles are 6061-T6 and 6063-T6. The finish can be mill finish, anodized, or powder-coated, depending on the desired appearance and level of corrosion resistance.
Equal Angle Profiles
Product Diagram & Dimensions
| a | a | s | kg/m |
| 10 | 10 | 1,5 | 0,075 |
| 10 | 10 | 2 | 0,098 |
| 10 | 10 | 2 | 0,098 |
| 12 | 12 | 2 | 0,119 |
| 15 | 15 | 1,2 | 0,094 |
| 15 | 15 | 1,3 | 0,101 |
| 15 | 15 | 1,5 | 0,116 |
| 15 | 15 | 2 | 0,152 |
| 15 | 15 | 3 | 0,220 |
| 19 | 19 | 1,6 | 0,158 |
| 20 | 20 | 1,2 | 0,126 |
| 20 | 20 | 1,5 | 0,157 |
| 20 | 20 | 2 | 0,206 |
| 20 | 20 | 3 | 0,301 |
| 20 | 20 | 3,5 | 0,346 |
| 25 | 25 | 1,2 | 0,159 |
| 25 | 25 | 1,5 | 0,197 |
| 25 | 25 | 2 | 0,260 |
| 25 | 25 | 2 | 0,260 |
| 25 | 25 | 3 | 0,382 |
| 28 | 28 | 3 | 0,431 |
| 30 | 30 | 1,2 | 0,191 |
| 30 | 30 | 1,5 | 0,238 |
| 30 | 30 | 2 | 0,314 |
| 30 | 30 | 2 | 0,314 |
| 30 | 30 | 2,3 | 0,360 |
| 30 | 30 | 3 | 0,463 |
| 35 | 35 | 1,5 | 0,278 |
| 40 | 40 | 1,2 | 0,256 |
| 40 | 40 | 1,5 | 0,319 |
| 40 | 40 | 2 | 0,423 |
| 40 | 40 | 3 | 0,626 |
| 40 | 40 | 4 | 0,824 |
| 40 | 40 | 6 | 1,203 |
| 40 | 40 | 5 | 1,016 |
| 45 | 45 | 3,5 | 0,82 |
| 50 | 50 | 1,5 | 0,4 |
| 50 | 50 | 1,5 | 0,4 |
| 50 | 50 | 2 | 0,531 |
| 50 | 50 | 2 | 0,531 |
| 50 | 50 | 3 | 0,789 |
| 50 | 50 | 5 | 1,287 |
| 50 | 50 | 5,8 | 1,481 |
| 60 | 60 | 6 | 1,854 |
| 60 | 60 | 4 | 1,257 |
| 70 | 70 | 5 | 1,829 |
| 80 | 80 | 6 | 2,504 |
| 80 | 80 | 10 | 4,065 |
| 90 | 90 | 10 | 4,607 |
| 100 | 100 | 7,5 | 3,913 |
| 100 | 100 | 8 | 4,163 |
| 100 | 100 | 10 | 5,176 |
| a | a | s | lb/ft |
| 0,39 | 0,39 | 0,06 | 0,050 |
| 0,39 | 0,39 | 0,08 | 0,066 |
| 0,39 | 0,39 | 0,08 | 0,066 |
| 0,47 | 0,47 | 0,08 | 0,080 |
| 0,59 | 0,59 | 0,05 | 0,063 |
| 0,59 | 0,59 | 0,05 | 0,068 |
| 0,59 | 0,59 | 0,06 | 0,078 |
| 0,59 | 0,59 | 0,08 | 0,102 |
| 0,59 | 0,59 | 0,12 | 0,148 |
| 0,75 | 0,75 | 0,06 | 0,106 |
| 0,79 | 0,79 | 0,05 | 0,085 |
| 0,79 | 0,79 | 0,06 | 0,105 |
| 0,79 | 0,79 | 0,08 | 0,138 |
| 0,79 | 0,79 | 0,12 | 0,202 |
| 0,79 | 0,79 | 0,14 | 0,233 |
| 0,98 | 0,98 | 0,05 | 0,107 |
| 0,98 | 0,98 | 0,06 | 0,132 |
| 0,98 | 0,98 | 0,08 | 0,175 |
| 0,98 | 0,98 | 0,08 | 0,175 |
| 0,98 | 0,98 | 0,12 | 0,257 |
| 1,10 | 1,10 | 0,12 | 0,290 |
| 1,18 | 1,18 | 0,05 | 0,128 |
| 1,18 | 1,18 | 0,06 | 0,160 |
| 1,18 | 1,18 | 0,08 | 0,211 |
| 1,18 | 1,18 | 0,08 | 0,211 |
| 1,18 | 1,18 | 0,09 | 0,242 |
| 1,18 | 1,18 | 0,12 | 0,311 |
| 1,38 | 1,38 | 0,06 | 0,187 |
| 1,57 | 1,57 | 0,05 | 0,172 |
| 1,57 | 1,57 | 0,06 | 0,214 |
| 1,57 | 1,57 | 0,08 | 0,284 |
| 1,57 | 1,57 | 0,12 | 0,421 |
| 1,57 | 1,57 | 0,16 | 0,554 |
| 1,57 | 1,57 | 0,24 | 0,808 |
| 1,57 | 1,57 | 0,20 | 0,683 |
| 1,77 | 1,77 | 0,14 | 0,551 |
| 1,97 | 1,97 | 0,06 | 0,269 |
| 1,97 | 1,97 | 0,08 | 0,357 |
| 1,97 | 1,97 | 0,12 | 0,530 |
| 1,97 | 1,97 | 0,20 | 0,865 |
| 1,97 | 1,97 | 0,23 | 0,995 |
| 2,36 | 2,36 | 0,24 | 1,246 |
| 2,36 | 2,36 | 0,16 | 0,845 |
| 2,76 | 2,76 | 0,20 | 1,229 |
| 3,15 | 3,15 | 0,24 | 1,683 |
| 3,15 | 3,15 | 0,24 | 1,683 |
| 3,15 | 3,15 | 0,39 | 2,732 |
| 3,54 | 3,54 | 0,39 | 3,096 |
| 3,94 | 3,94 | 0,30 | 2,629 |
| 3,94 | 3,94 | 0,31 | 2,797 |
| 3,94 | 3,94 | 0,39 | 3,478 |
